There’s an old saying in AI that computers are great at things that humans find hard (like doing complex math) and computers really struggle with things that humans find easy (like catching a ball or recognizing objects).

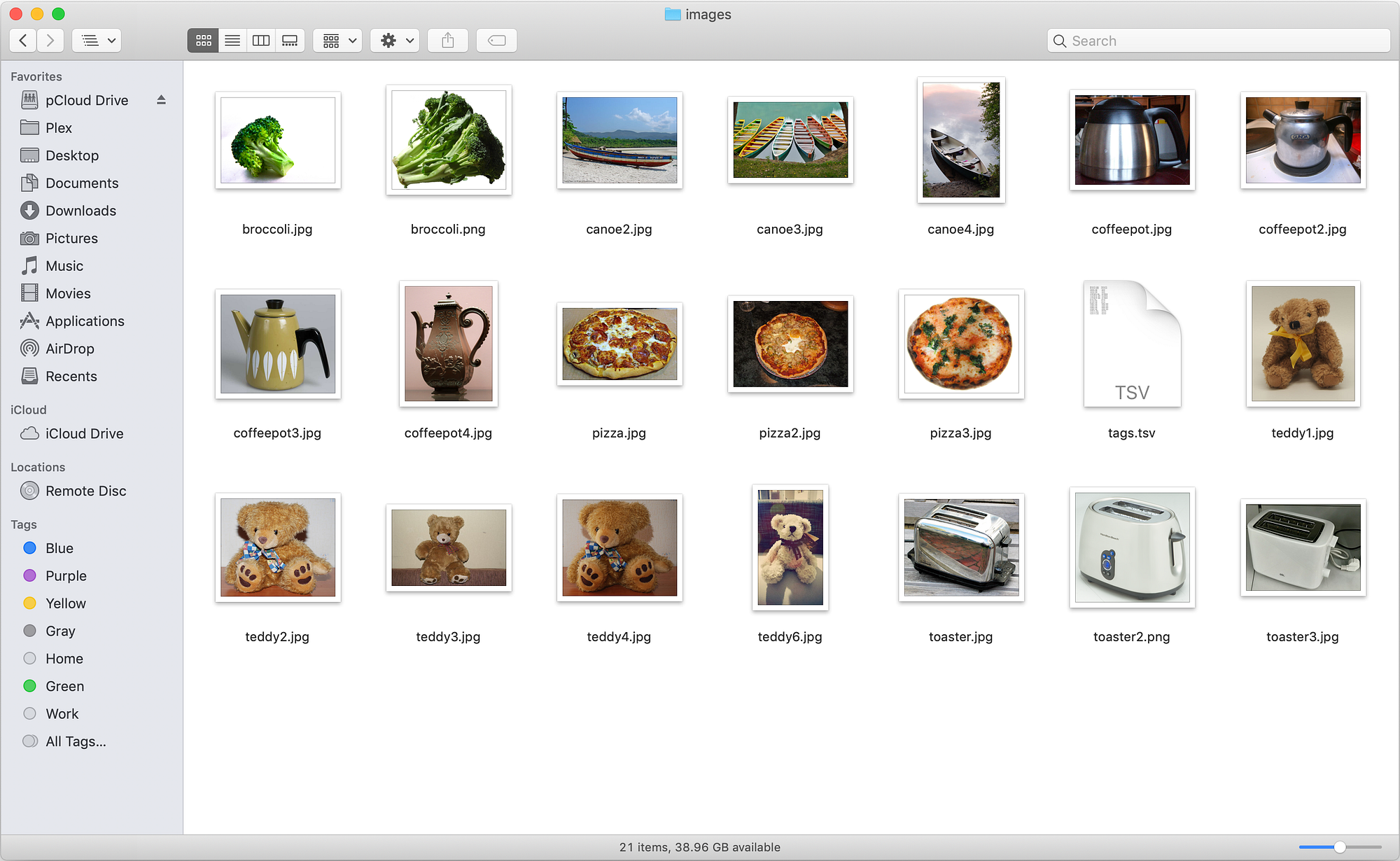

Let’s take recognizing objects as an example. Check out the following collection of images:

These 20 images depict a broccoli, a canoe, a coffee pot, a pizza, a teddy bear, and a toaster. How hard would it be to build an app that can recognize the object in every image?

Really hard, actually.

In fact, it’s so difficult that there’s an annual challenge called the ImageNet Large Scale Visual Recognition Challenge. The challenge requires apps to classify a collection of 1.2 million images into 1,000 unique categories.

Here are the competition results up to 2016:

The red line depicts the 5% human error rate on the image classification challenge. In 2015 a team finally developed an app that could beat human performance levels.

That was years ago. Can I build a C# app today with MLNET and NET Core that can do the same?

MLNET is Microsoft’s new machine learning library. It can run linear regression, logistic classification, clustering, deep learning, and many other machine learning algorithms.

And NET Core is the Microsoft multi-platform NET Framework that runs on Windows, OS/X, and Linux. It’s the future of cross-platform NET development.

My first thought was to build a convolutional neural network in MLNET, train it on the 1.2 million images in the ImageNet set, and then use the trained network to predict the 20 images in my test set.

But there’s no need to go through all that trouble. Fully-trained object-detection networks are readily available, and MLNET can easily host and run a neural network that has already been trained.

So my best course of action is to grab a TensorFlow neural network that has been trained on the ImageNet data, and just drop it into MLNET for immediate use.

I’ll use the Google Inception network in my app. What makes the Inception model unique is its use of stacked ‘Inception Modules’: special neural submodules that run convolutions with different kernel sizes in parallel, like this

This is a single inception module shown in Netron, a popular neural network viewer. The three convolution kernels (1x1, 3x3, and 5x5) are highlighted in red and run in parallel.

This trick of running several different convolutions in parallel gives Inception excellent predictive ability on a wide range of images.

You can download the Inception model from here.

I’ll also use a folder with test images and corresponding labels. I’ll use this small 20-image set from a Microsoft MLNET code sample.

The set includes a TSV file which looks like this:

It’s a tab-separated file with only 2 columns of data:

• The filename of the image to test

• The type of object in the image

Let’s get started. Here’s how to set up a new console project in NET Core:

$ dotnet new console -o ImageDetector
$ cd ImageDetector

Next, I need to install the MLNET packages:

$ dotnet add package Microsoft.ML
$ dotnet add package Microsoft.ML.ImageAnalytics
$ dotnet add package Microsoft.ML.TensorFlow

The ImageAnalytics package contains libraries that help MLNET deal with image data. And the Tensorflow package adds support for running pretrained TensorFlow models.

Now I’m ready to add some classes. I’ll need one to hold an image record, and one to hold my model’s predictions.

I will modify the Program.cs file like this:

/// <summary>
/// A data class that hold one image data record
/// </summary>
public class ImageNetData
{
    [LoadColumn(0)] public string ImagePath;
    [LoadColumn(1)] public string Label;

    /// <summary>
    /// Load the contents of a TSV file as an object sequence representing images and labels
    /// </summary>
    /// <param name="file">The name of the TSV file</param>
    /// <returns>A sequence of objects representing the contents of the file</returns>
    public static IEnumerable<ImageNetData> ReadFromCsv(string file)
    {
        return File.ReadAllLines(file)
            .Select(x => x.Split('\t'))
            .Select(x => new ImageNetData
            {
                ImagePath = x[0],
                Label = x[1]
            });
    }
}

/// <summary>
/// A prediction class that holds only a model prediction.
/// </summary>
public class ImageNetPrediction
{
    [ColumnName("softmax2")]
    public float[] PredictedLabels;
}

The ImageNetData class holds one single image record. Note how each field is tagged with a LoadColumn attribute that tells the CSV data loading code which column to import data from.

There’s also a ReadFromCsv method which manually reads a file and returns a sequence of ImageNetData objects. I’ll use this method later.

I’m also declaring a ImageNetPrediction class which will hold a single image prediction.

Now I’m going to load the images in memory:

/// <summary>
/// The application class
/// </summary>
class Program
{
    /// <summary>
    /// The main application entry point.
    /// </summary>
    /// <param name="args">The command line arguments></param>
    static void Main(string[] args)
    {
        // create a machine learning context
        var mlContext = new MLContext();

        // load the TSV file with image names and corresponding labels
        var data = mlContext.Data.LoadFromTextFile<ImageNetData>("images/tags.tsv", hasHeader: true);

        // the rest of the code goes here....
    }
}

This code uses the method LoadFromTextFile to load the TSV data directly into memory. The class field annotations tell the method how to store the loaded data in the ImageNetData class.

Now I’m ready to start building the machine learning model:

// set up a learning pipeline
var pipeline = mlContext.Transforms

    // step 1: load the images
    .LoadImages(
        outputColumnName: "input",
        imageFolder: "images",
        inputColumnName: nameof(ImageNetData.ImagePath))

    // step 2: resize the images to 224x224
    .Append(mlContext.Transforms.ResizeImages(
        outputColumnName: "input",
        imageWidth: 224,
        imageHeight: 224,
        inputColumnName: "input"))

    // step 3: extract pixels in a format the TF model can understand
    // interleave and offset values are identical to what the model was trained on
    .Append(mlContext.Transforms.ExtractPixels(
        outputColumnName: "input",
        interleavePixelColors: true,
        offsetImage: 117))

    // step 4: load the TensorFlow model
    .Append(mlContext.Model.LoadTensorFlowModel("models/tensorflow_inception_graph.pb")

    // step 5: score the images using the TF model
    .ScoreTensorFlowModel(
        outputColumnNames: new[] { "softmax2" },
        inputColumnNames: new[] { "input" },
        addBatchDimensionInput:true));

// train the model on the data file
Console.WriteLine("Start training model....");
var model = pipeline.Fit(data);
Console.WriteLine("Model training complete!");

// the rest of the code goes here....

Machine learning models in MLNET are built with pipelines, which are sequences of data-loading, transformation, and learning components.

My pipeline has the following components:

• LoadImages which loads images from disk. The component needs the name of the input column holding the file names, the folder in which to look for images, and the name of the output column to load images into.

• ResizeImages which resizes images. This is a required step because the inception model has been trained on 224x224 pixel images. So I need to present my images using the same size for the model to work (*)

• ExtractPixels which flattens the image data into a 1-dimensional array of floats. Note that I interleave color channels and use an offset of 117, because that’s what the Inception model has been trained on (*)

• LoadTensorFlowModel which will load a TensorFlow model from disk.

• ScoreTensorFlowModel which will feed the image data into the TensorFlow model and collect the scores from the dense classifier at the output side.

(*) As a rule when working with pre-trained neural networks, we need to preprocess our images in the exact same way as the data the network has been trained on. In case of ImageNet this means resizing all images to 224x224, interleaving color channels, and using a pixel offset value of 117.

The ScoreTensorFlowModel component requires the name of the input node that will receive the image data and the name of the output node that holds the softmax predictions.

I can easily find these nodes by viewing the Inception model in Netron. This is the neural network input, with an id of ‘input’:

And here is the softmax classifier at the output, with an id of ‘softmax2’:

So the two node names I have to provide to ScoreTensorFlowModel are ‘input’ and ‘softmax2’.

With the pipeline fully assembled, I can train the model with a call to Fit(…).

Note that training doesn’t actually do anything here. The TensorFlow model is already fully trained and all model parameters are frozen. So in this case, the Fit method just assembles the pipeline and returns a model instance.

To wrap up, I’m going to load the test images and ask the model to make a prediction for each image:

// create a prediction engine
var engine = mlContext.Model.CreatePredictionEngine<ImageNetData, ImageNetPrediction>(model);

// load all imagenet labels
var labels = File.ReadAllLines("models/imagenet_comp_graph_label_strings.txt");

// predict what is in each image
Console.WriteLine("Predicting image contents....");
var images = ImageNetData.ReadFromCsv("images/tags.tsv");
foreach (var image in images)
{
    Console.Write($"  [{image.ImagePath}]: ");
    var prediction = engine.Predict(image).PredictedLabels;

    // find the best prediction
    var i = 0;
    var best = (from p in prediction
                select new { Index = i++, Prediction = p }).OrderByDescending(p => p.Prediction).First();
    var predictedLabel = labels[best.Index];

    // show the corresponding label
    Console.WriteLine($"{predictedLabel} {(predictedLabel != image.Label ? "***WRONG***" : "")}");
}

I use the CreatePredictionEngine method to set up a prediction engine. The two type arguments are the input data class and the class to hold the prediction.

Next, I load the complete list of ImageNet labels. This text file is in the Inception model folder you downloaded earlier and looks like this:

It’s just a list of all 1,000 unique ImageNet category labels.

Then I use the ReadFromCsv method to load the 20 test images, and call Predict on each one. That gives me an array of 1,000 floats with the probabilities that the image belongs to each category.

In other words, prediction[1] is the probability that the image contains a Kit Fox, prediction[2] is the probability that the image contains an English Setter, and so on.

I’m only interested in the best prediction, so I use a LINQ query to find the highest value and the corresponding category label.

Here’s the code running in the Visual Studio Code debugger:

… and in a terminal window:

The app is quite fast and can identify an image in a fraction of a second. It does a really good job on the test set and correctly identifies 19 out of 20 images. That’s an accuracy of 95%.

The app only made one single mistake and predicted that coffeepot4.jpg is actually a pitcher of water:
